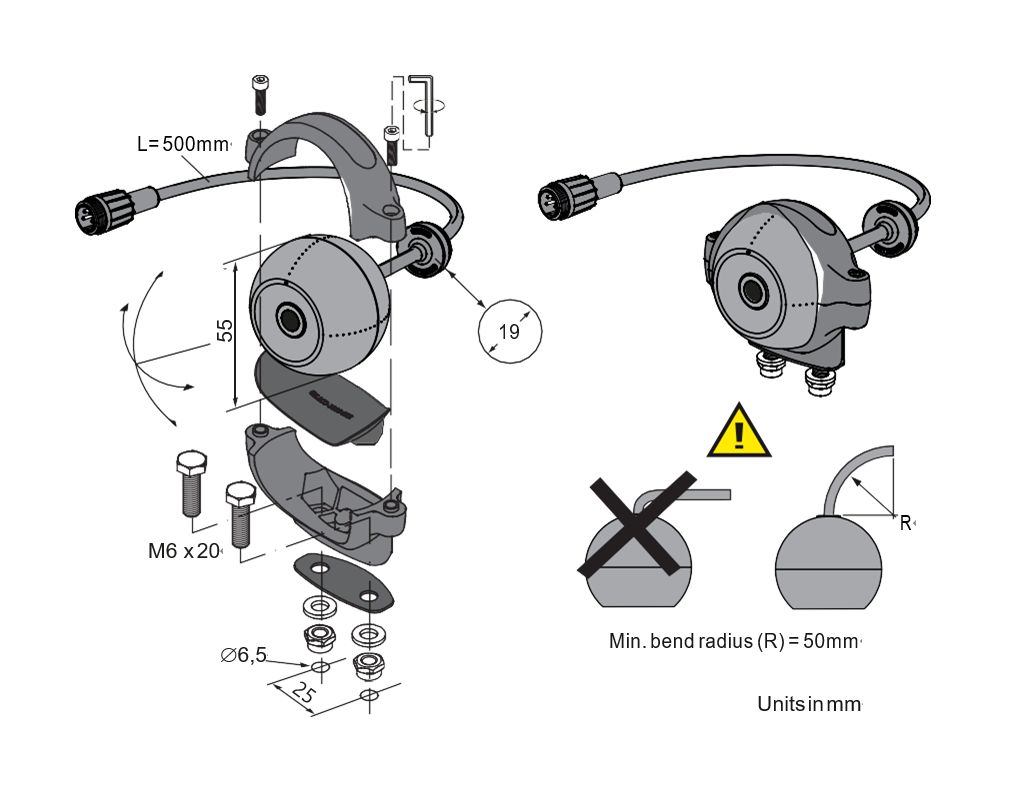

The Orlaco Compact Camera is a versatile camera that can be used in virtually all vision solutions on any machine and on any vehicle or vessel. The small, extremely sturdy, ball camera is contained in a special, adjustable bracket, which ensures that the camera can easily be mounted in any position.

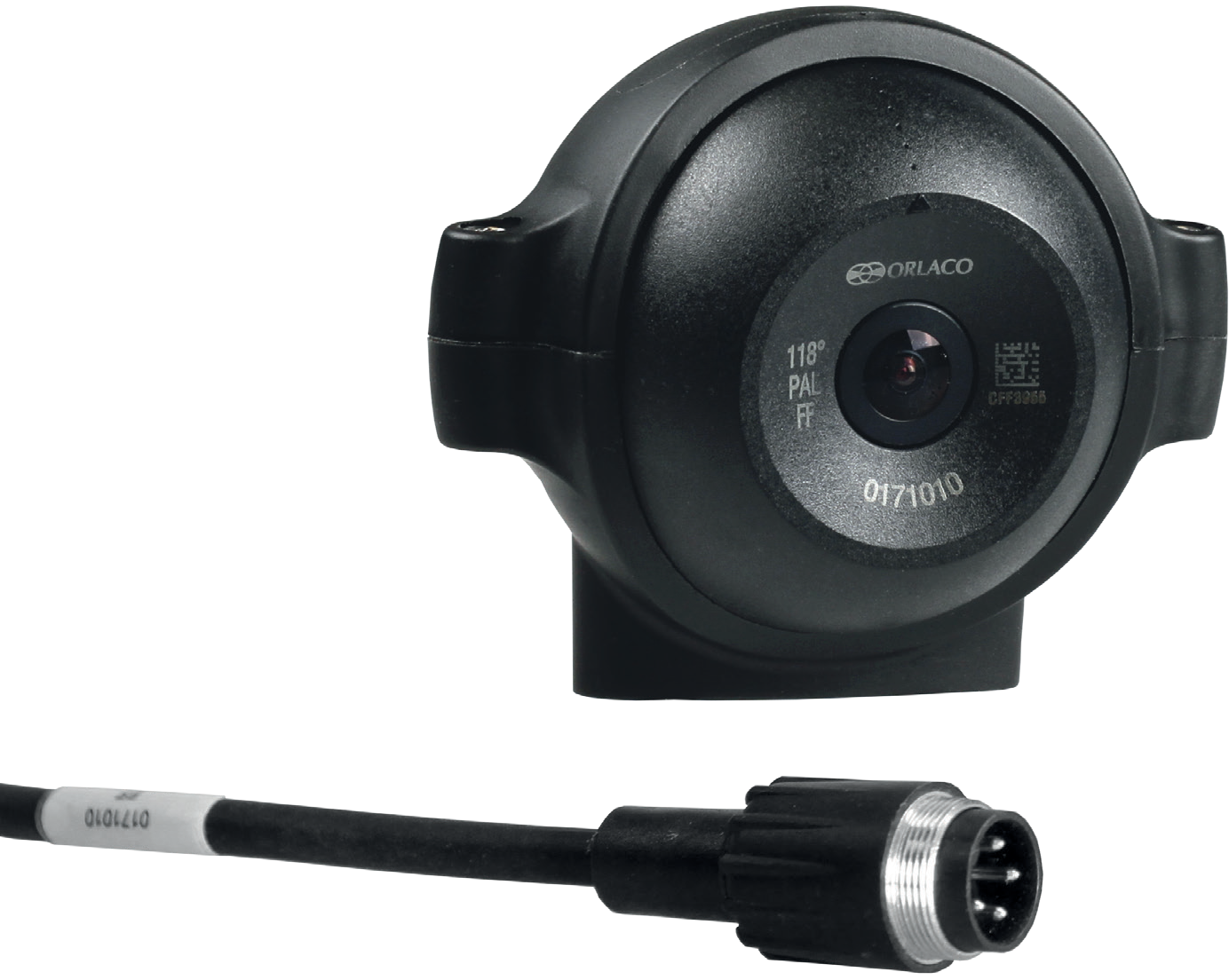

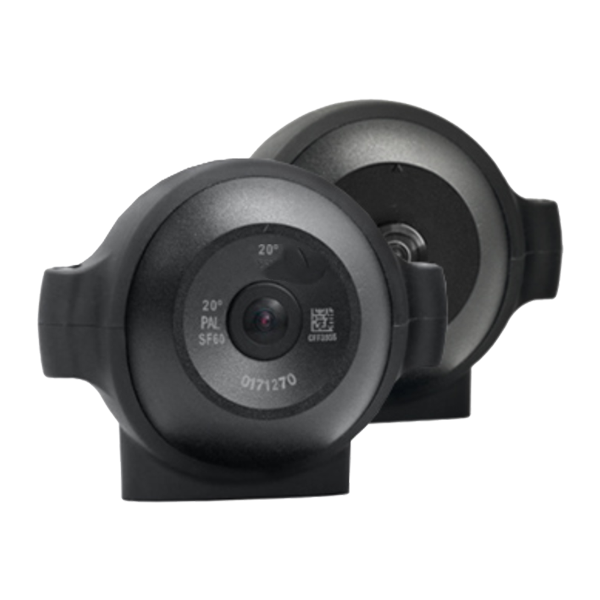

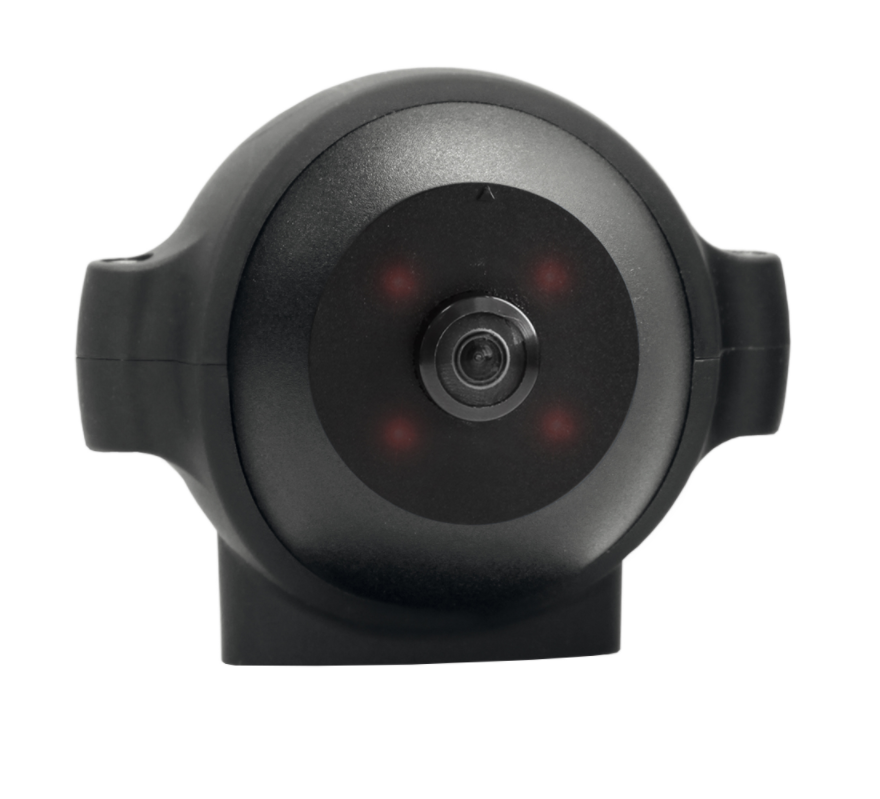

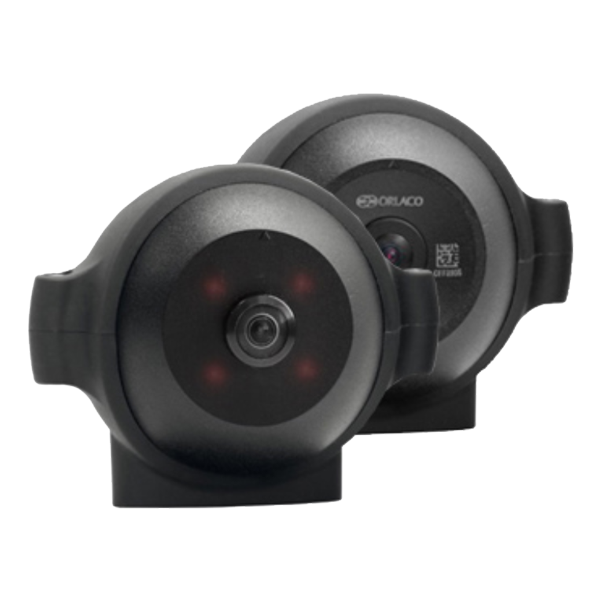

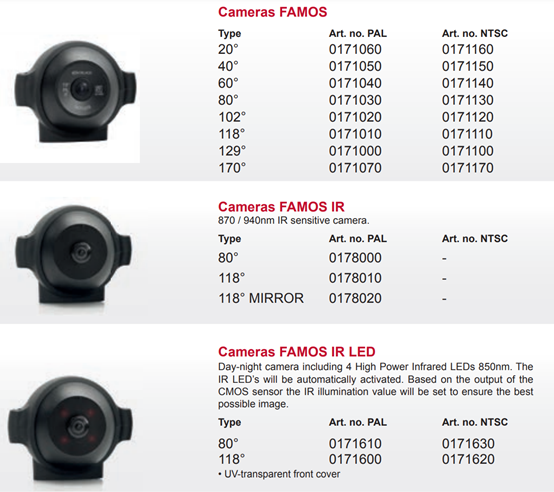

The FAMOS camera with 4-pin Orlaco connector is suitable for all Orlaco UNI vision systems. The following types are available: standard cameras (FAMOS standard), day/night standard cameras (FAMOS IR standard) and the specials (FAMOS (IR) special). The FAMOS (IR) specials are cameras with certain preset functions.

The qualifications of our FAMOS Compact Cameras：

• Next generation CMOS sensor

• Light sensitivity 0.05 lux

• Integrated Safety ticker to show that camera is running and active

• Optimized impact- and vibration resistance

• Chemically hardened lens

• Automotive molding-filled housing, watertight IP69K according to DIN 40050-9

• Improved EMC-standards

• Operating temperature between -40°C to +85°C

• Heated lens glass, therefore no problems with condensation or frost

• Fixed lens

• IP68 dust- and waterproof according to IEC 60529

• The camera has a 0,5m cable including a waterproof molded 4p male connector

If you need quote, please sent mail to orlaco@broadcctv.com
