Product Overview:

The Orlaco Ethernet RTP/AVB EMOS cameras are ideal for integration in onboard computer systems. The Ethernet technology in this camera provides real-time image in HD quality. These cameras with an M12-D coded Ethernet 4-pins male can be connected to third party monitors and HMIs.

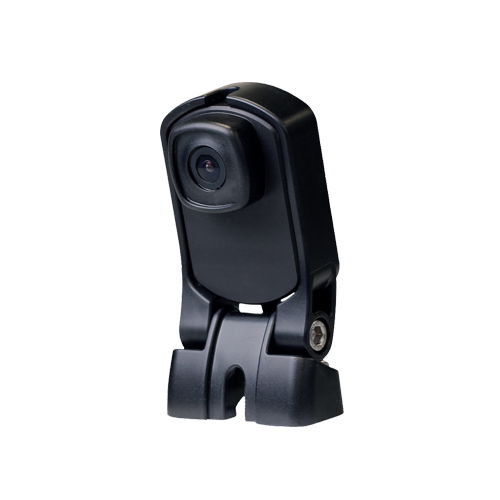

Camera EMOS Ethernet

Description

Article number      0186000 0186010 0186020 0186030 0186040

Lens specified        180°       120°     90°     60°     30°

Horizontal lens angle  180°       120°     90°     60°     30°

Vertical lens angle     130°       91°      68°     45°     22°

Sensor element： High resolution 1/3” CMOS rolling shutter, 1280H x 960V.

Video image： 60fps at 720p SDR, 45fps at 960p SDR image processing and 56fps at 720p HDR, 43fps at 960p HDR image processing.

Protocols： RTP (MJPEG RFC2435 and h.264 RFC6184) over UDP, ISO17215-2014, IEEE1722 (AVB), ARP.

IP address： DHCPv4 or static IPv4 (IPv6 possible).

Latency：<100ms depending on hardware processing platform (50ms demonstrated on Orlaco hardware).

Light sensitivity： responsitivity 5,5V/lux-sec, Low light feature (<0,1Lux).

High dynamic range： >115dB.

Compression： MJPEG, H.264 (High 10 intra profile encoding).

Interface： 100Mb/s (Fast Ethernet).

Image processing： Color and gamma correction, 3D noise correction, edge enhancement, digital WDR, advanced contrast enhancement, auto

white-balance, auto exposure control, mirroring, flipping, photometric and geometric lens distortion correction.

Electrical

Power input： 12/24V/DC. Below 7V: camera is non-functional. Above 33V the overvoltage protection is activated. This overvoltageprotection is deactivated below 30V. Powercircuit is protected up to 80V/DC. Outputs are Short Circuit Protected.

In all these above mentioned values; a tolerance of +/-10% is applied.

Power consumption：<2W.

Transient protection： Camera may be powered directly from 12V or 24V battery without additional electrical protection since camera has an

integrated circuit that protects the camera against over- and undervoltage, spikes, ripples and loaddumps (ISO-Pulses).

Connector/Cable： 6 wire: 2x twisted pair for data and 2 wires for power supply. Connector 4-pin M12 d-coded for data and open wires for

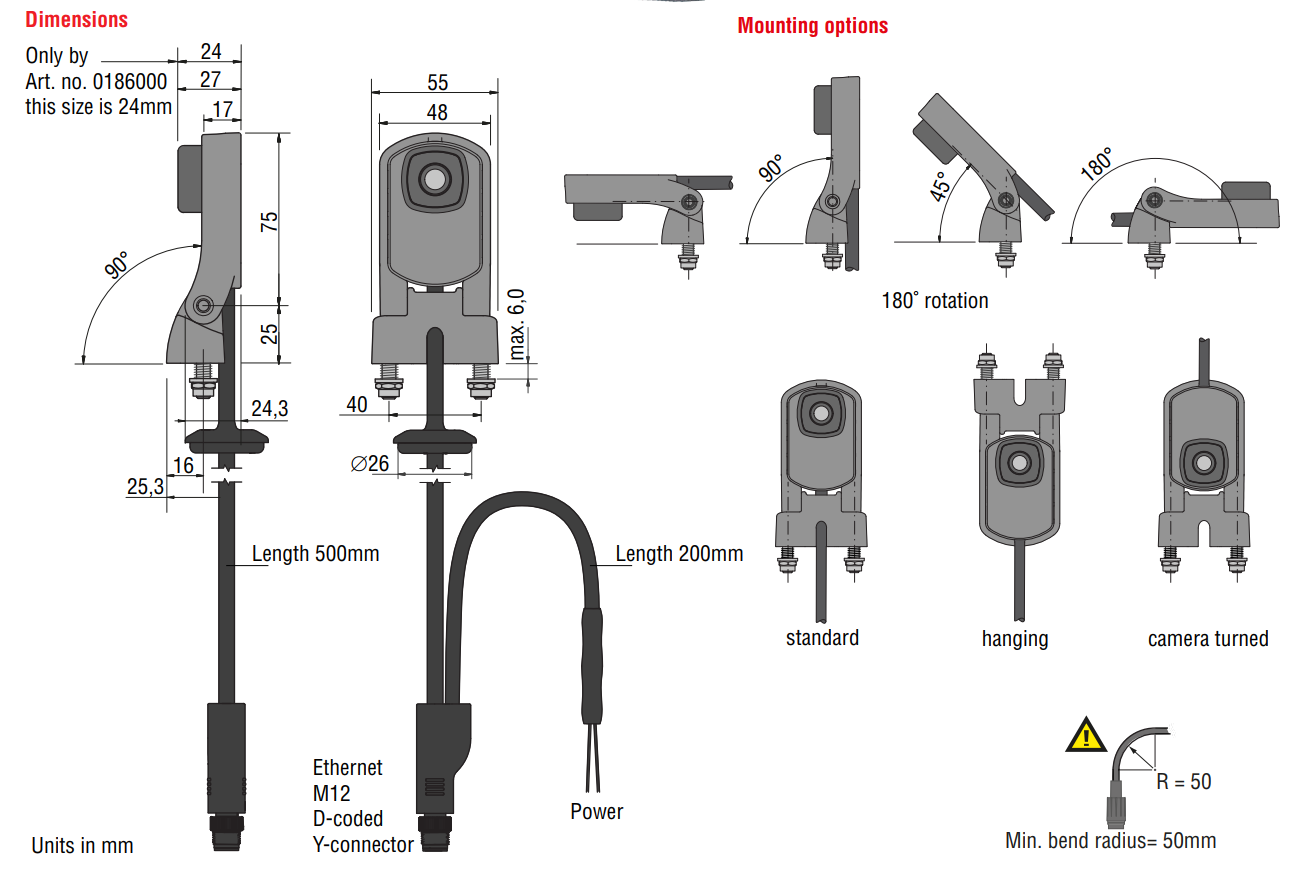

power supply. Length cables: see Dimensions, page 1.

Min. cable bend radius： 50mm

Mechanical

Housing： Anodised aluminium, black, UV resistant, light fastness >8, corrosion proof according IEC 60068-2-52 salt mist, cyclic.

Filling： Camera is potted with automotive potting resin

Ingress protection： IP67 according to IEC 60529; dust tight and protected against the effects of immersion in water up to 1m under water for

30 minutes. IP69k according to DIN 40050-9: camera can withstand a high pressure cleaning with water: 14-16L/min. 80°C

and 100 bars flow.

Shock constancy： Shock and vibration resistant for usage on trucks, cranes, fork-lifts, maritime applications, machinery.

Camera bracket： Material: glass reinforced plastics, test: 50 Nm at -40°C to +85°C. Mounting hardware standard stainless steel.

Weight： 0,24kg. including cable, bracket and mounting material. 0,30kg. in standard packing.

Truck use： Withstand all fluids and materials used in and around trucks like: ammonia solution 5%, ethanol 80-100%, isopropanol

5-10%, soapy water (min. 50% soap per volume), alkaline degreasing compounds(used in high pressure washing equipment).

Operating temperature： -40°C to +85°C.

Storage temperature： -40°C to +125°C.

Certification

Approvals： In compliance with all relevant EMC- and Automotive directives. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation. Certificates available

upon request.

Compliant with RoHS and REACH.

Features

This camera complies to：

R10 ECE regulations.

FCC regulations.

EN 12895 (2000) Industrial trucks – Electromagnetic Compatibility.

EN 13309 (2010) Construction machinery – E.C. of machines with internal power supply.

EN ISO 14982 (2009) Agricultural and forestry machinery - Electromagnetic Compatibility.

ISO 13766 (2006) Earth-moving machinery - Electromagnetic Compatibility.

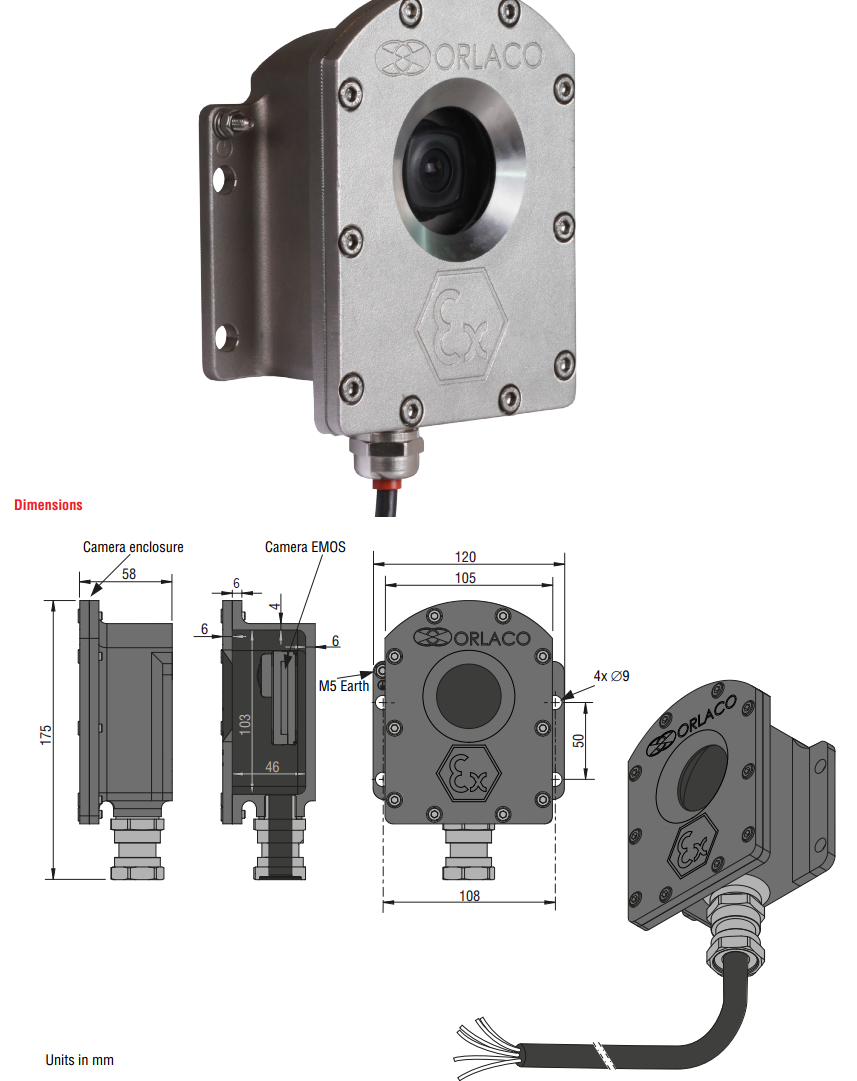

Camera EMOS Ex

Article number   0181610   0181620 0181630

Lens specified       90°       30°      60°

Horizontal lens angle 90°       30°      60°

Vertical lens angle    68°      22°      45°

Sensor element: High resolution 1/3” CMOS rolling shutter, 1280H x 960V.

Video image: 60fps at 720p SDR, 45fps at 960p SDR image processing and 56fps at 720p HDR, 43fps at 960p HDR image processing.

Protocols: RTP (MJPEG RFC2435 and h.264 RFC6184) over UDP, PTP and gPTP, ISO17215-2014, IEEE1722 (AVB), ARP.

IP address:  DHCPv4 or static IPv4 (IPv6 possible).

Latency: >115dB.

Compression: MJPEG, H.264 (High 10 intra profile encoding).

Interface: 100Mb/s (Fast Ethernet).

Image processing: Color and gamma correction, 3D noise correction, edge enhancement, digital WDR, advanced contrast enhancement, auto white-balance, auto exposure control, mirroring, flipping, photometric and geometric lens distortion correction.

Electrical Power input: 12/24V/DC. Below 7V: camera is non-functional. Above 33V the overvoltage protection is activated. This overvoltageprotection is deactivated below 30V. Powercircuit is protected up to 80V/DC. Outputs are Short Circuit Protected. In all these above mentioned values; a tolerance of +/-10% is applied.

Power consumption:<2W

Transient protection: Camera may be powered directly from 12V or 24V battery without additional electrical protection since camera has an integrated circuit that protects the camera against over- and undervoltage, spikes, ripples and loaddumps (ISO-Pulses). Cable Cable length 5m, open wires, 6 wire: 2x twisted pair for data and 2 wires for power supply.

Min. cable bend radius: 50mm.

Mechanical Housing Ex enclosure: Material Stainless steel 316L.

Filling camera: Camera is potted with automotive potting resin.

Ingress protection: IP66.

Shock constancy: Shock and vibration resistant for usage on trucks, cranes, fork-lifts, maritime applications, machinery. Truck use Withstand all fluids and materials used in and around trucks like: ammonia solution 5%, ethanol 80-100%, isopropanol 5-10%, soapy water (min. 50% soap per volume), alkaline degreasing compounds(used in high pressure washing equipment).

Ex Certification and approvals

Suitable for use in Ex zone 1/21 and 2/22

Atex, directive 2014/34/EU

IEC 60079-0:2011, EN 60079-0:2012/+A11: 2013,

IEC/EN 60079-1: 2014,

EN 13309

ISO 13766

EN ISO 14982

FCC

UNECE R10

Ex-Code

Ex db IIC T6 Gb, Tamb: -40°C + 70°C

Ex tb IIIC T 85°C Db

Entries Ex d glands only
