Product Overview：

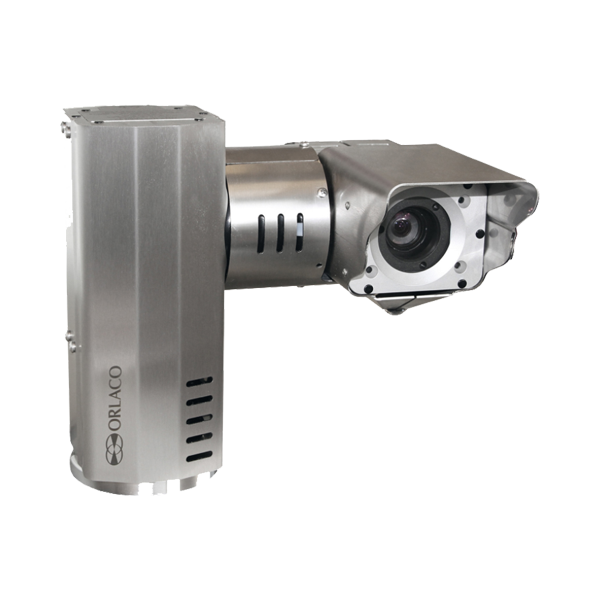

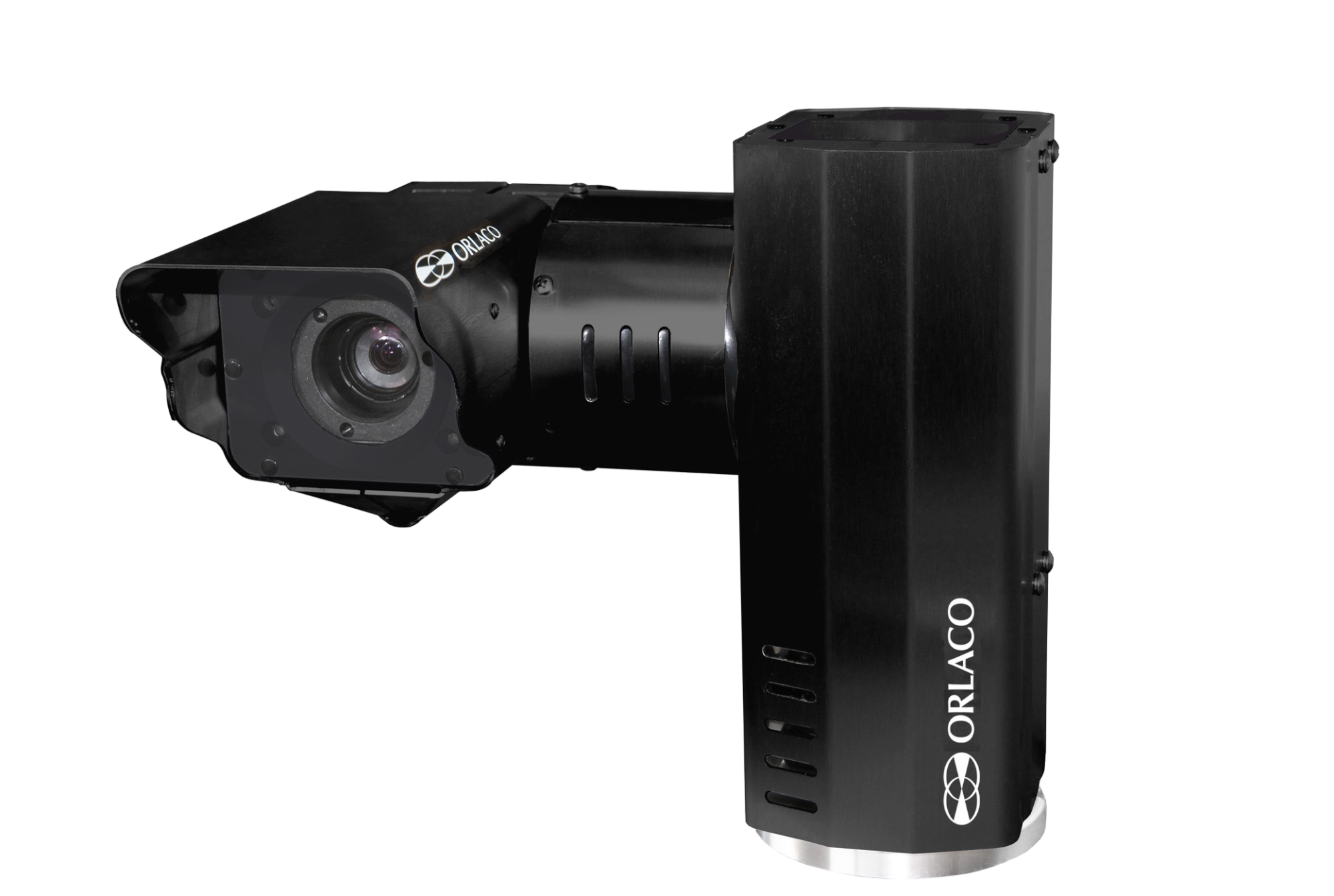

The sturdy Orlaco PTZ camera aluminium PAL RS232 can be used in many serial vision solutions on machines, vehicles and vessels. The camera is shock and vibration proof, filled with nitrogen, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions. In addition, the camera has a 0 lux night vision mode and a built-in brightness function for improved view in dark situations.

The powerful camera, with an overall 480x zoom (40x optical and 12x digital) for Orlaco Standard RS232 (Pelco-D/Visca) communication. The camera has a 180 degree lifting angle and can rotate 180 degrees to the left and 180 degrees to the right (360 degrees) with a speed of 12.5 degrees per second.

The qualifications of our Pan & Tilt Zoom Cameras (PTZ)

• Operating temperature between -40°C to +60°C

• Built-in brightness function to ensure better visibility on dark areas

• 40x optical zoom, 1,6° to 48° horizontal opening angle

• Built-in night vision function ( 0 lux mode)

• Nitrogen-fi lled camera housing, 100% watertight (IP 69K)

• Heated lens glass, therefore no problems with condensation or frost

• Shock and vibration resistant

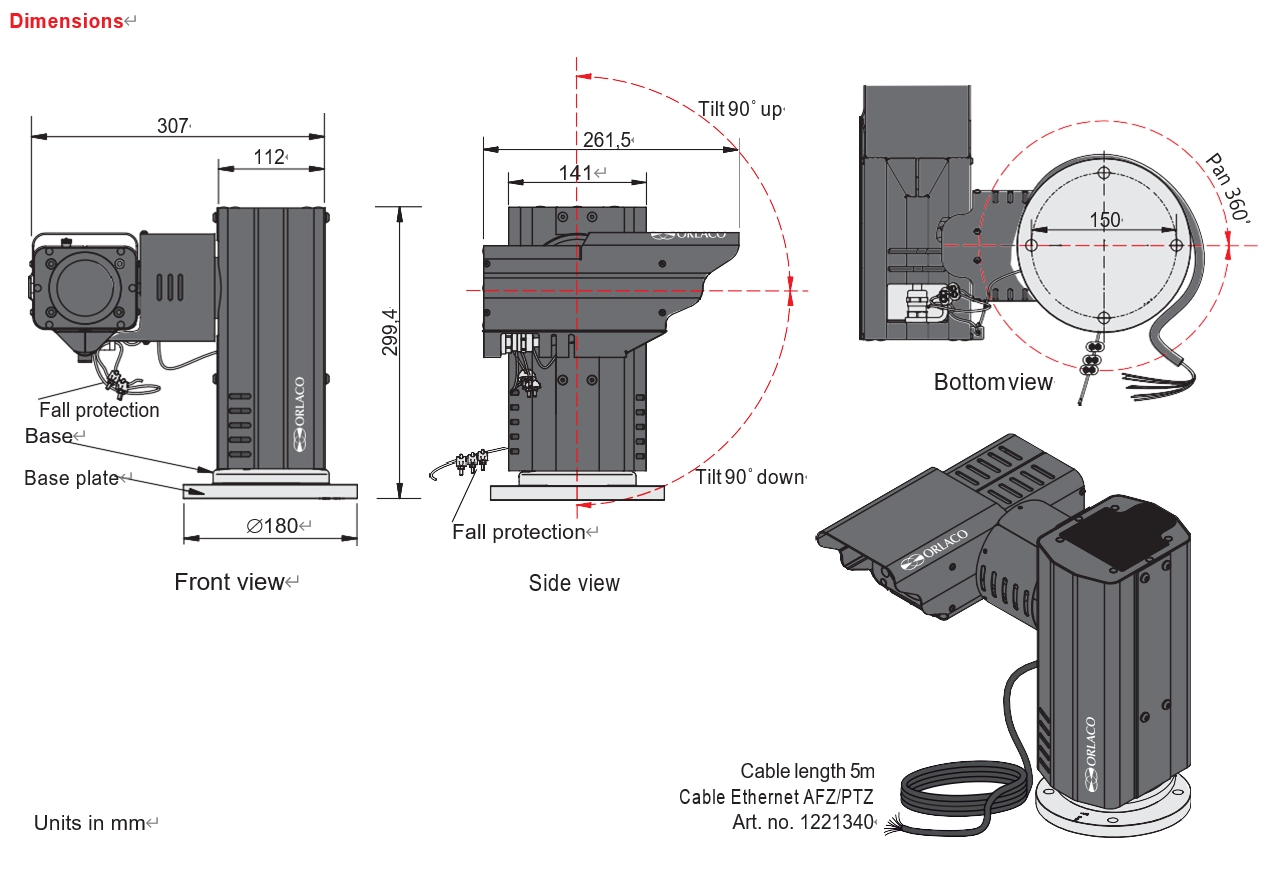

• Dimensions: HxWxD 284x307x141mm

• Including 5m cable with 7p connector

• 6 presets for camera positions

• Pan angle 360° (180° to left, 180° to the right) tilt angle 180° (90° up, 90° down)

• Pan & tilt speed 12,5°/sec

• Power supply 18V to 30V/DC T
