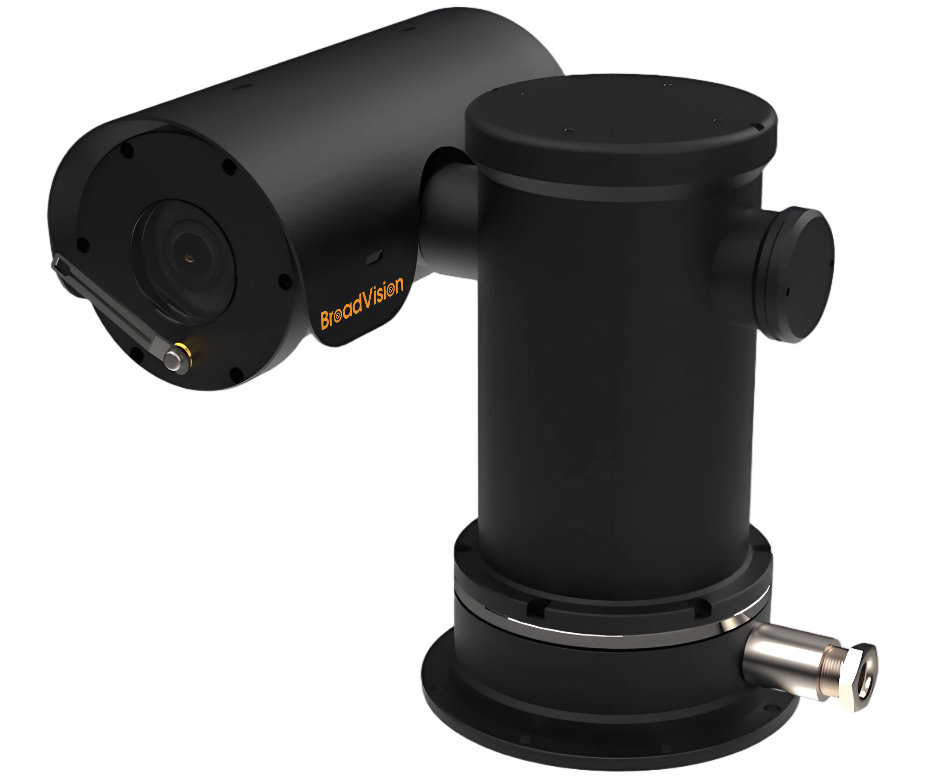

Camera PTZ-HD-F
Product Features：
IP69K
Anti-Shocks 50G
Anti-Vibration
Low Latency
Night vision mode
Mechanical self-locking
High Accuracy ±0.1°
OverviewSpecificationDownload
| Camera PTZ-HD-F |
| Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | Max：2688×1520（60Hz，30fps） |
| Focus | 7.1mm to 213mm |
| Zoom | 30X optical zoom，16X digital zoom |
| Aperture | F1.61 - F5.19 |
| Angle of view | H：57.62° to 3.92° |
| M.O.D | 100mm to 1500mm |
| Min.illumination | ICR-Off：0.0001Lx；ICR-On0.00005Lx |
| Shutter speed | 1/25 to 1/100000s |
| S/N ration | 52dB |
| Wide Dynamic | 120dB |
| Standards | H.265，H.264 |
| Latency | 170ms（1920×1080，30fps） |
| Zoom speed | ≈4s |
| Mechanical |
| Structural | 304/316 Stainless steel mounting parts &
sun cover,anodized aluminium housing CNC integrated molding,Black oxidation
treatment + spray coating |
| Anti-Corrosion | Salt mist,cyclic（IEC 60068-2-52） |
| IP Grade | IP68（IEC60529）dustproof & waterproof（dip in water up to 3m for 60minutes） IP69K（DIN 40050-9）suffer high pressure
washing（14-16L/min,80°C, 100bar） |
| Inner Fill | Dry-nitrogen filled,1.4Bar overpressure |
| Anti-Shock | 50G,6ms,Half sine wave |
| Bracket | Seat mounted mode:Movement 0° installation Side mounted mode:Lens 90°
installation（switching time<5minutes） |
| Working Temp | -40℃ to +60℃ |
| Glass | Vacuum nano-coated glass,5*stronger
than ordinary glass With Anti-fog coating
AF coating & AR coating（up to 95%VLT） |
| Weight | <10kg |
| General |
| Protocols | TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,
RTP,RTSP,RTCP,NTP,SMTP,SNMP, IPv6 IONVIF（PROFILE S,PROFILE G）,GB28181 |
| Control | ONVIF,PELCO-D/P,GB28181 |
| Anti-Shake | Gyro-stabilized anti-shake |
| Electrical |
| Input Voltage | 24V DC |
| Power Rating | Heating on：13W & Heating off：8W
& PTZ：60W |
| Communication | 100M Ethernet |
| Aviation Joint | Aviation connector |
| Cable | Open wired,Length can be customizable |
| Safety measure | Lightning/Over voltage/Reverse Protection |
| PTZ |
| Pan angle | Total 360°, 180° left, 180° right |
| Tilt angle | Total 180°，90° up，90° down |
| Speed Range | 0.1°/s ~ 40°/s |
| Response Speed | <100ms |
| Position Accuracy | ±0.1° |
| Preset Points | Support preset point settings and
cruise scanning |
| Get Coordinates | PTZ absolute coordinate setting and
acquisition |
| Power Off Memory | Power on reset：After power on,
first return to zero point, then return
to the power on position again |
| Drive System | Steel turbine worm,mechanical self-locking |
| Rated Wind Velocity | Normal operation at 140km/h；180km/h（max） |
| Electrical Connections |
1_Orange/White EthernetTX+ 2_Orange EthernetTX- 3_Green/White EthernetRX+ 4_Green EthernetRX- 5_Blue/White NC. 6_Blue NC. 7_Brown/White NC. 8_Brown NC. 9_Yellow/White RS 485A+ 10_Yellow RS 485B- 11_Pink/White COM1 12_Pink COM2 13_Purple/White UART_T 14_Purple UART_R 15_Red DC+ 12/24V 16_Black DC- |  |
