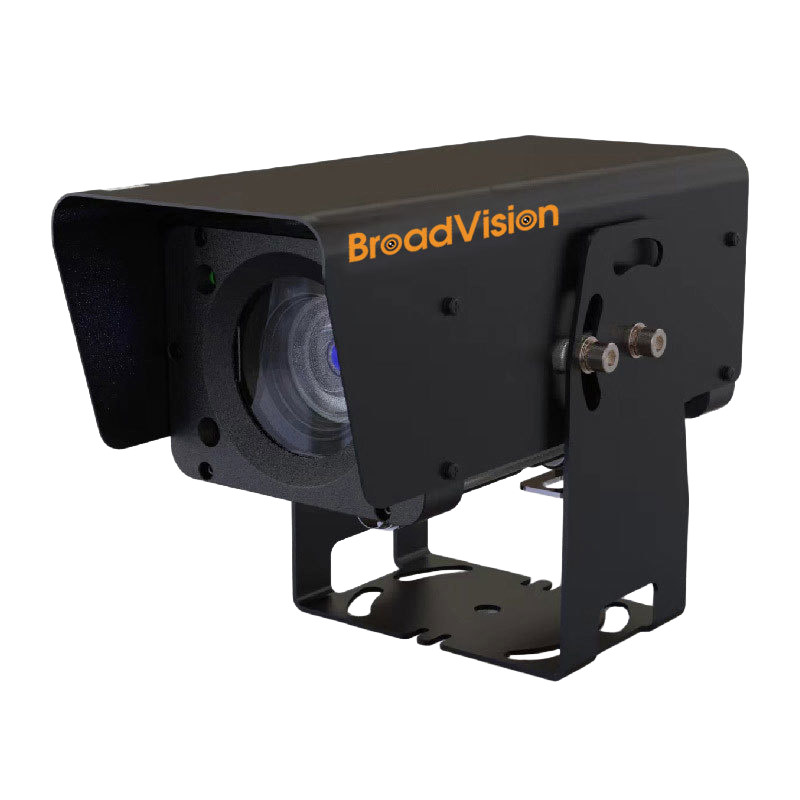

Camera AFZ-HD-A(W)
Product Features：
IP69K
Anti-Shocks
Anti-Vibration
Low Latency
Wide Angle
OverviewSpecificationDownload
| Camera AFZ-HD-A(W) |
| Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | Max：2560×1440（60Hz，30fps） |
| Focus | 2.8mm to 12mm |
| Zoom | 4X optical zoom |
| Aperture | F1.6 - F3.0 |
| Angle of view | H: 96° to 29.39°，V：16.63°~51° |
| M.O.D | 100mm to 1500mm |
| Min.illumination | ICR-Off: 0.001Lx; ICR-On: 0.0005Lx |
| Shutter speed | 1/25 to 1/100000s |
| S/N ration | 52dB |
| Standards | H.265,H.264 |
| Latency | 110ms（2560×1440，30fps） |
| Zoom speed | ≈2s |
| Start up time | <30s |

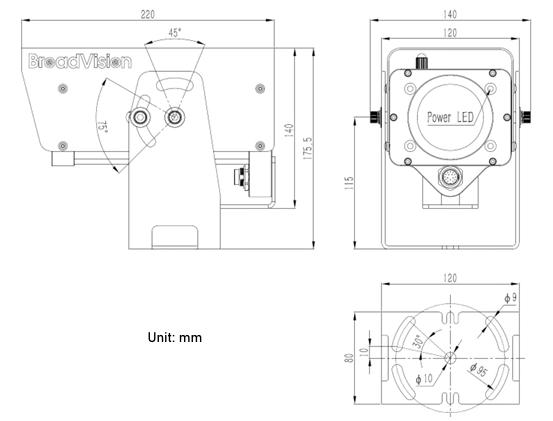

| Mechanical |
| Structural | 316L Stainless steel mounting parts & sun
cover,anodized aluminium housing,
CNC integrated molding |
| Anti-Corrosion | Salt mist,cyclic(IEC 60068-2-52) |
| IP Grade | IP68(IEC60529) dustproof & waterproof
（dip in water up to 3m for 60minutes） IP69K(DIN 40050-9) suffer high pressure
washing（14-16L/min,80°C, 100bar） |
| Inner Fill | Dry-nitrogen filled，1.4Bar overpressure |
| Anti-Shock | 50G，6ms,Half sine wave |
| Bracket | 316L stainless steel，including bolts,nuts
and washers.Suitable for mounting
overhead and standing. |
| Working Temp | -30℃ to +60℃ |
| Glass | Vacuum nano-coated glass,5*stronger
than ordinary glass With Anti-fog coating
AF coating & AR coating(up to 95%VLT) |
| Weight | 2.4kg |
| General |
| Protocols | TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,
RTP,RTSP,RTCP,NTP,SMTP,SNMP, IPv6 ONVIF(PROFILE S,PROFILE G),GB28181 |
| Control | RS485，UART，I/O |
| Electrical |
| Input Voltage | 12~24V DC,48V PoE |
| Power Rating | Heating off：6W |
| Communication | 100M Ethernet |
| Aviation Joint | M16 Screw-type Waterproof Connector |
| Cable | 1.5m，Open wired，Customizable length |
| Safety measure | Lightning/Overvoltage/Reverse Protection |

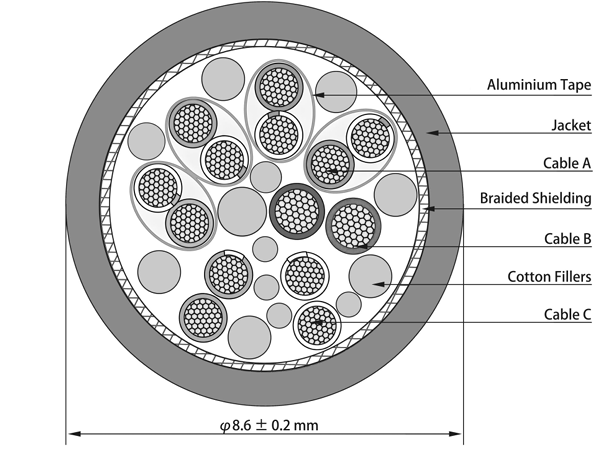

| Cable |
| Jacket | PUR，matte black |
| Outer diameter | 8.6±0.2mm |
| Filler material | Cotton |
| Shield | Tin plated copper |
| Conductor | Oxygen-free copper wire |
| CO.resistance | 35 Ohm/KM（20℃） |
| IN.resistance | 0.15 MOhm/KM（20℃） |
| Voltage level | 300V/500V |
| Rated Temp. | -40~90℃ |
| Standards | DRGB/2016 |
| Electrical Connections |
1_Orange/White EthernetTX+ 2_Orange EthernetTX- 3_Green/White EthernetRX+ 4_Green EthernetRX- 5_Blue/White NC. 6_Blue NC. 7_Brown/White NC. 8_Brown NC. 9_Yellow/White RS 485A+ 10_Yellow RS 485B- 11_Purple/White COM1 12_Purple COM2 13_NC. / 14_NC. / 15_Red DC+ 12/24V 16_Black DC-
|  |
